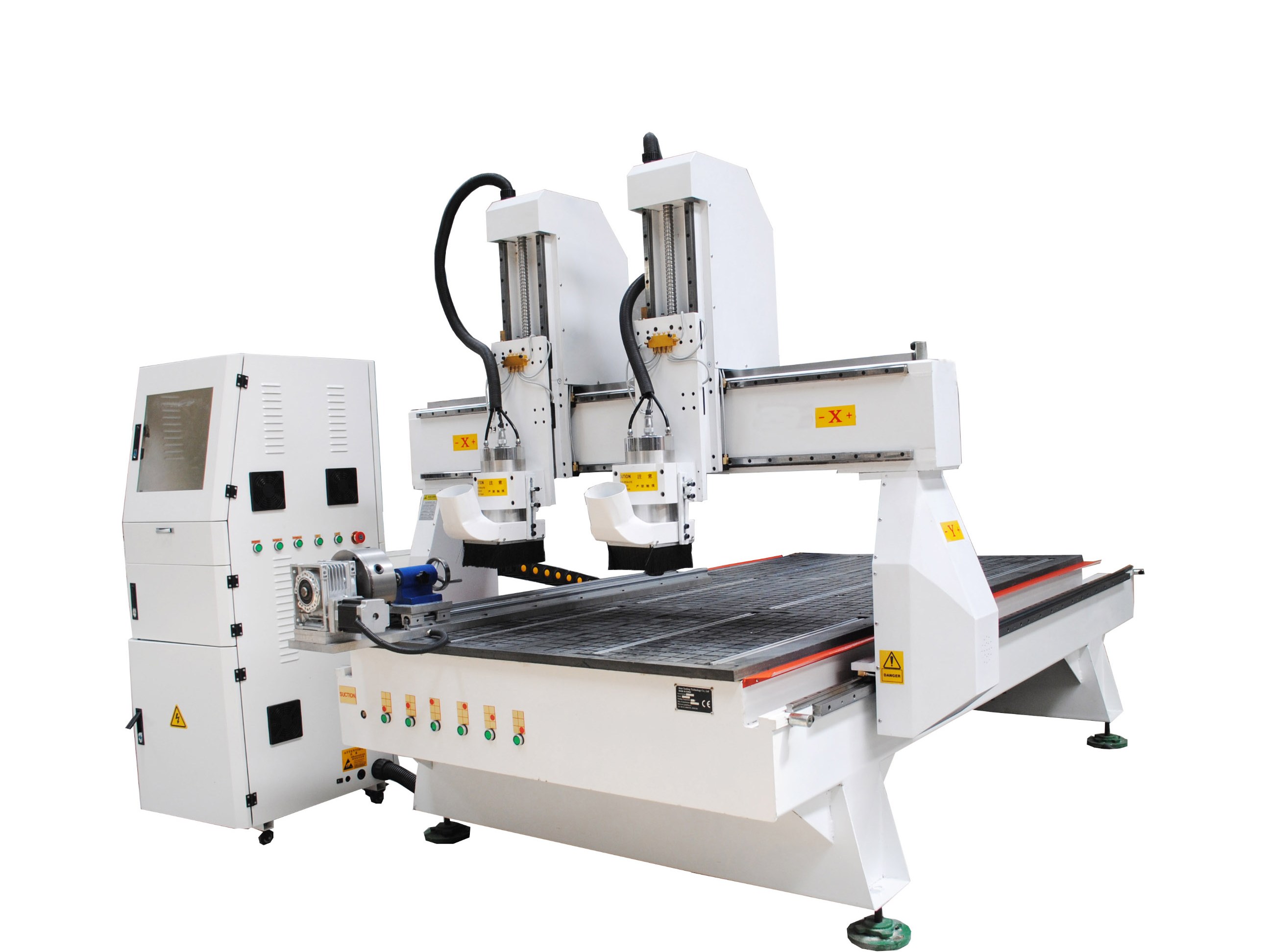

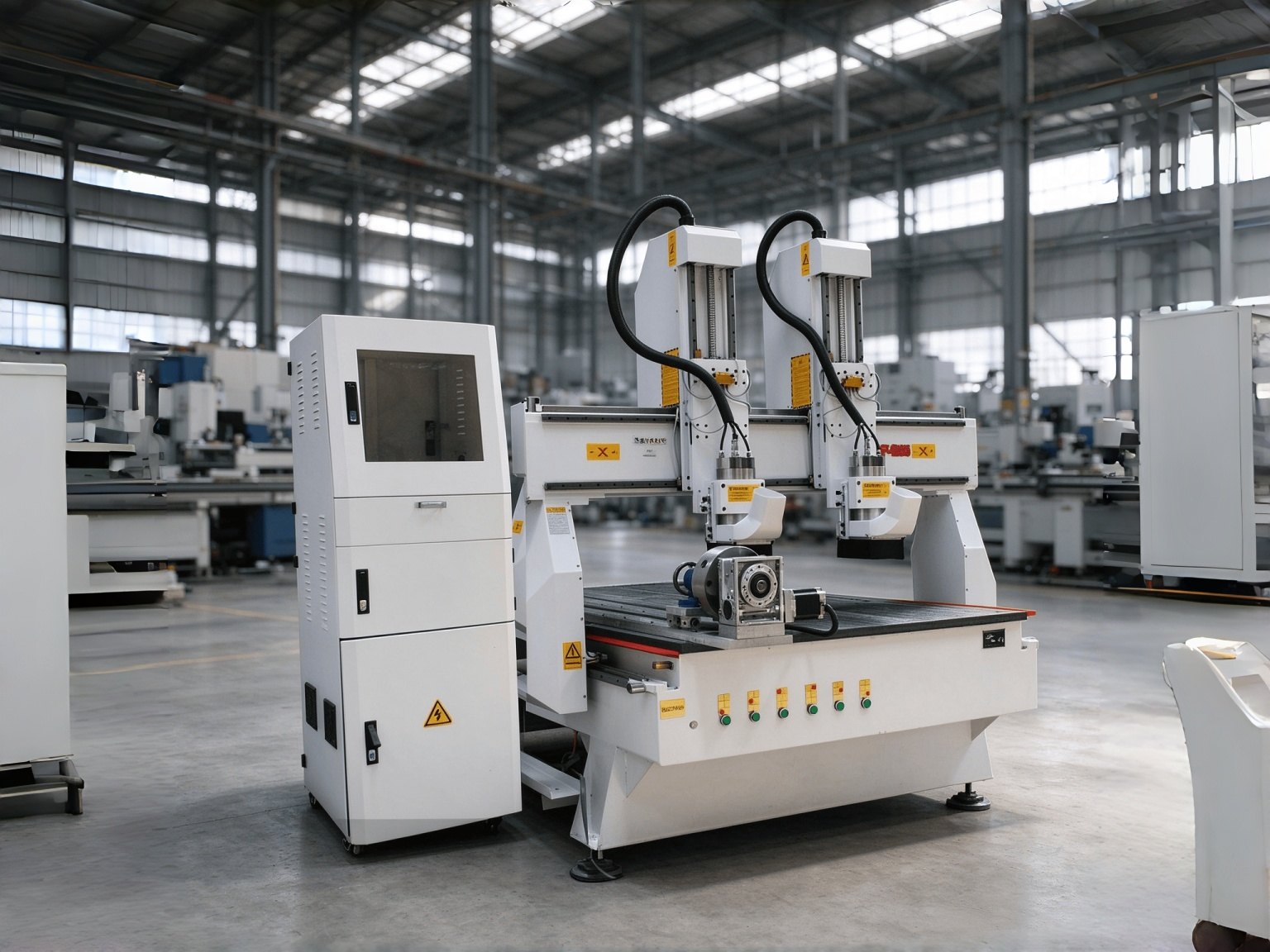

Two Head CNC Router GS-1325R

inquiry

DATA
Characteristics

SPECIFICATION
WORKING AREA	1300mm×2500mmx350mm
REPEATABILITY	0.04/300mm
SPINDLE POWER	4.5KW(Water cooling,2 SPINDLE)
GUIDE WAY	LINEAR (HIWIN)
ROUTER BITS DIAMETER	Φ16 Φ8 Φ12.7
POWER	AC380V/50HZ
MOVING SPEED	35m/min
WORKING SPEED	25m/min
TRANSMISSION	X Y AXIS HELICAL RACK, Z AXIS BALL SCREW
Spindle rotating speed	24000rpm
Command	G code.u00.mmg*plt
CONTROLLER	MDRCNC
MOTOR	Hybrid servo motor (Leashine)
ACCESSORY	DUST COLLECTOR/VACUUM SYSTEM


◆Adopt imported aquare orbit, double slippers, bearing heavy, working steadily, high precession, and long life time. Import ballscrew, high precision for cutting.

◆Adopting advanced DSP system, operate with the handle, convenient operation, humanization design.

◆Well compatibility: CAD/CAM designing software e.g. Type3/Artcam/Castmate/Wentai ect

◆Vacuum table with 6 vacuum zones, which can absorb different size materials. No oil vacuum pump., high suction, more conveni-ent, atable capability.

◆Adopt high apeed stepper motor and drivers, and two motors for Y axis, Max speed is 25M/MIN. Auto ALIGNING System with air cooling spindle highly upgrade the processing speed.
